Installation of SKANDINAVIA [ROTERA] Wood Slat Room Dividers
SKANDINAVIA Slat Room Dividers are very easy to install using our unique self-aligning installation system.
First step is to measure and mark the center point of the brackets on the ceiling and floor. The centerpoints should be exactly aligned. You can use either of the methods shown in Finding Plum Points achieve this.
Determine the distance of the centerpoints based on your application and your taste.
Installation Steps:
- Measure and mark the centerpoints of slats either on the floor or the ceiling using any of the two methods.
- You need to install one slat every 4" to get the overlapping pattern if you are using 4"x2" slats. Every 5" for 5"x2" slats.
- Mark the corresponding point on the other surface (ceiling or floor).
- Install the ceiling brackets. You need to drill a hole with diameter 7/16" and push the bracket into it. You can use a 3/8" drill bit and make the hole slightly wider.
- Install floor brackets by screwing them in place using one screw in the middle/center.
- Cut and fit the slats one at a time.
- Cut the slats 11/16” (18mm) less than the distance between the floor and ceiling to account for the thickness of the installation hardware. This will result in no gap between slat and floor and ceiling. Leave 1/4” extra of space at the top of slat if you wish to be able to remove the slats at a later time. This space will help accessing the push pin.
- Attach the bottom and top caps to the slats using screws provided.
- Remove the push pin from the top cap. and dry-fit the slats to make sure that everything is aligned and looks good.
- Put back the push pin and install the slats using the guide tool to protect the ceiling and for easy installation. The track in the guide tool will guide the push pin to the hole in the ceiling bracket.
Installation of ROTERA (Rotating Slats)

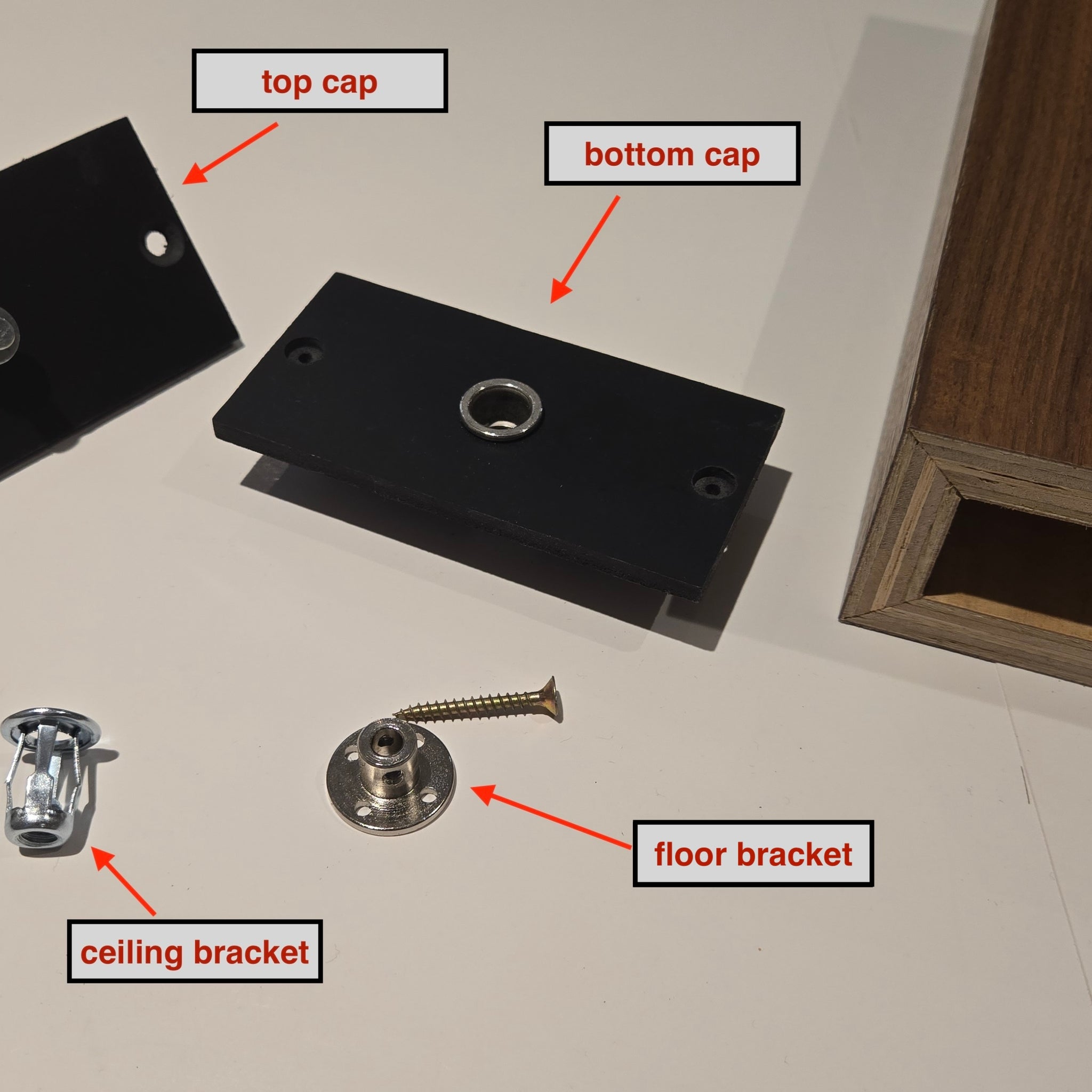

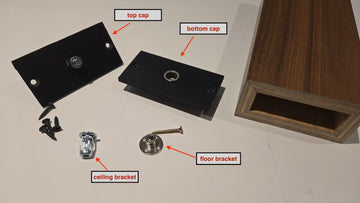

Installation Hardware
Included in your order

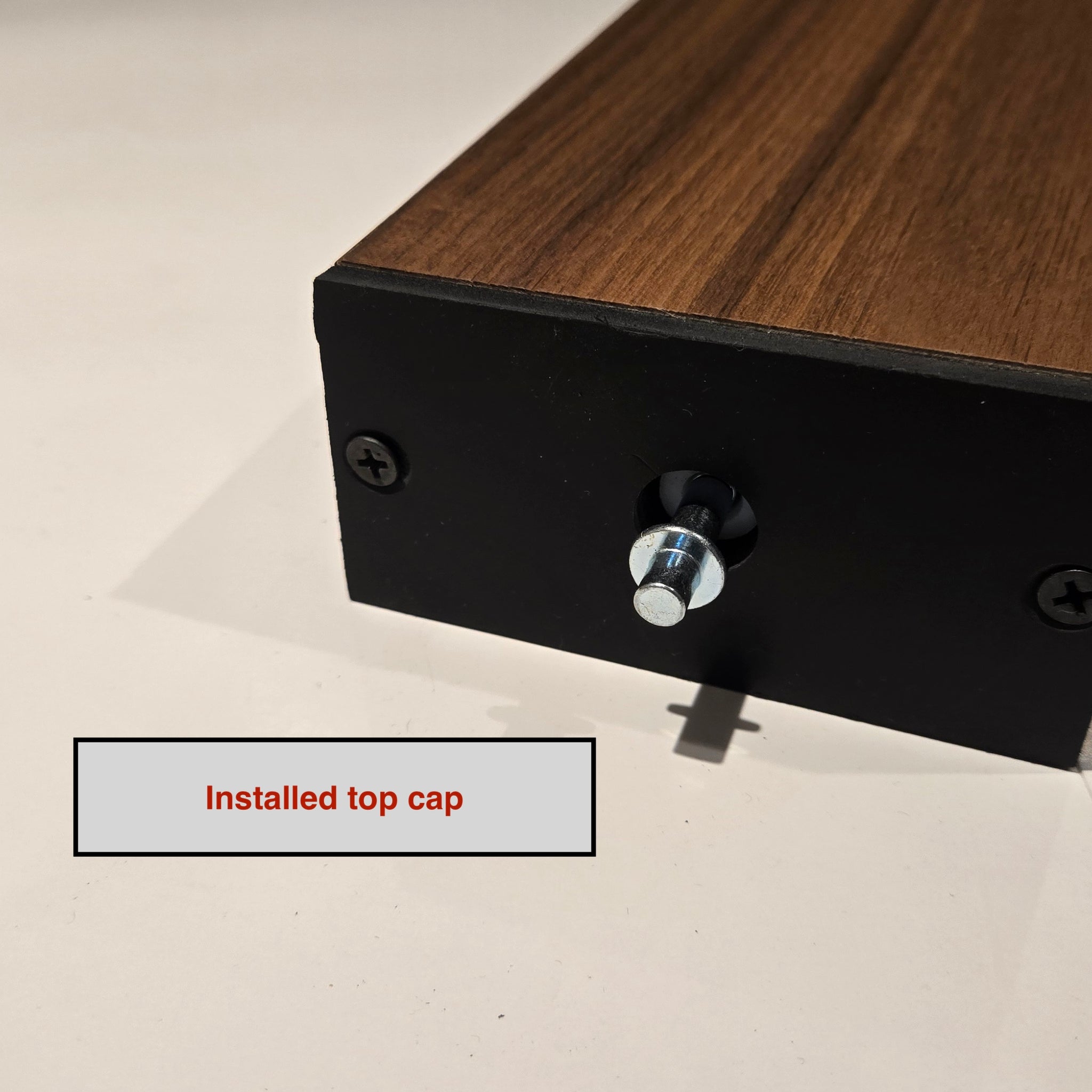

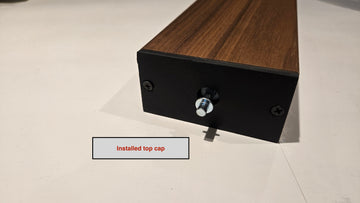

Installed Top Cap
Use provided screws to attach the cap to the slat.

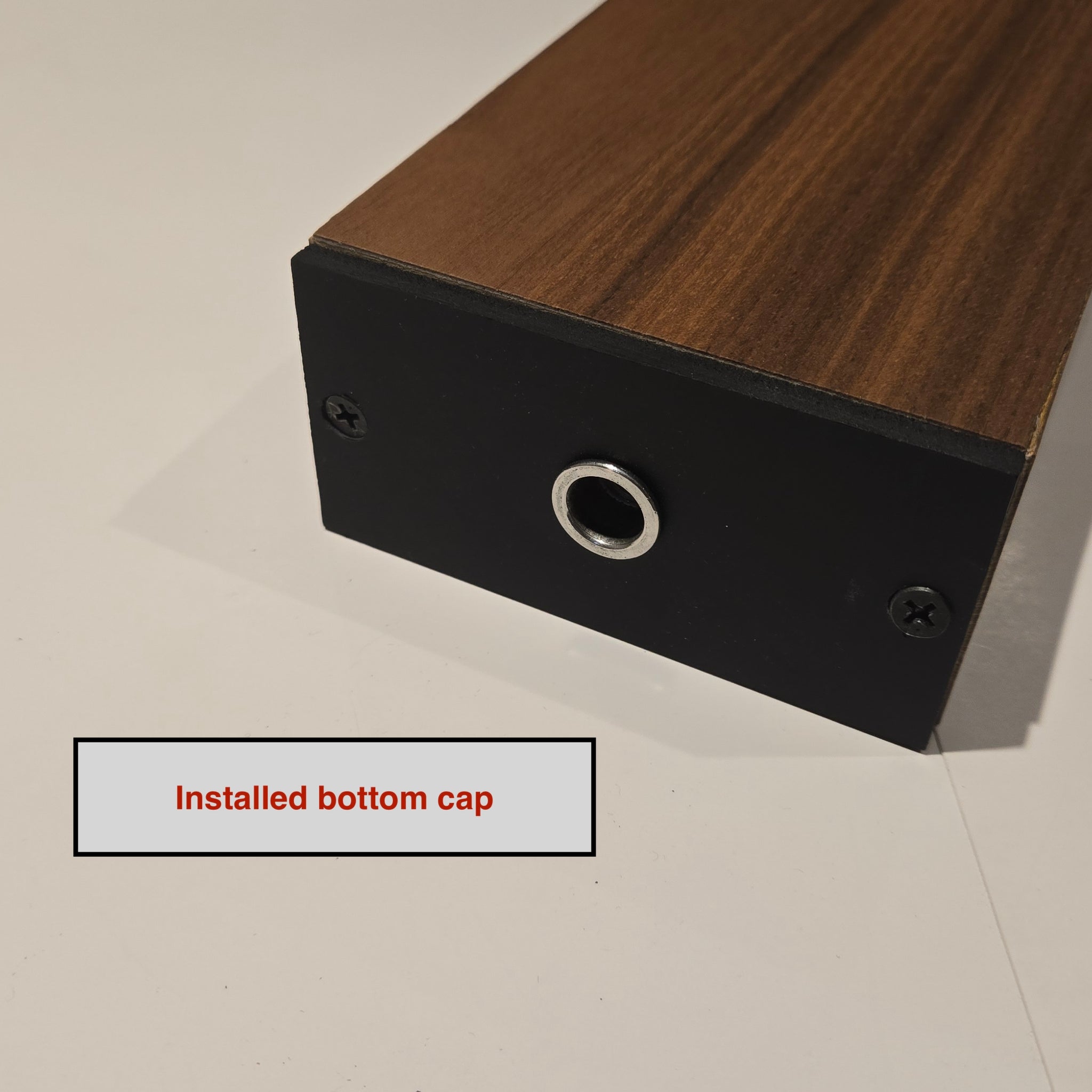

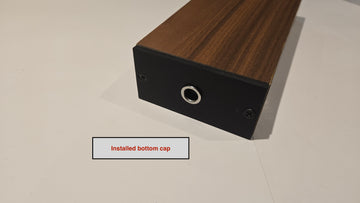

Installed Bottom Cap
Use provided screws to attach the cap to the slat.

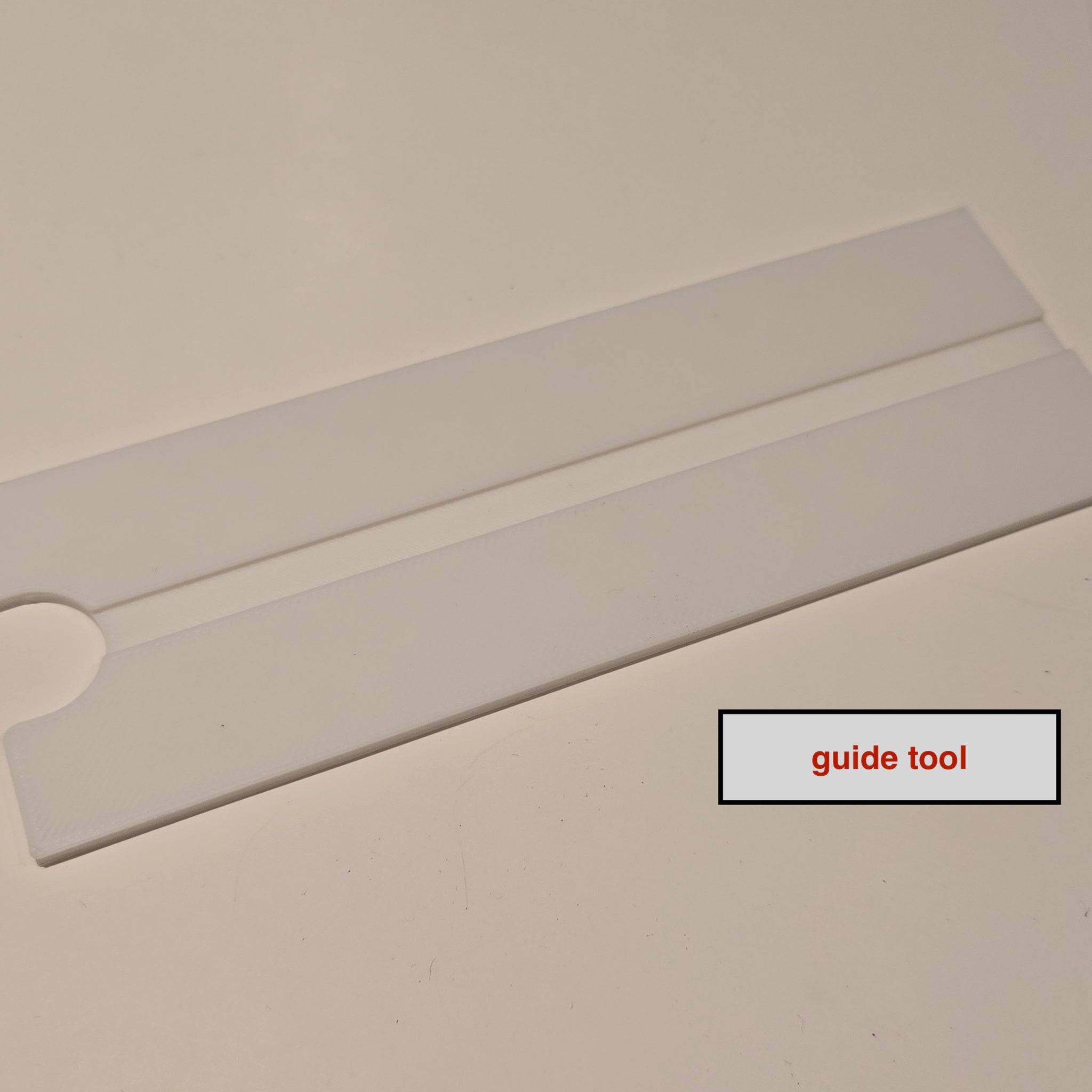

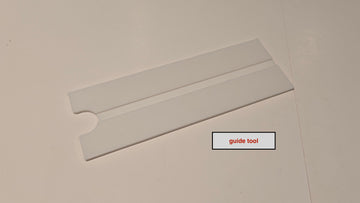

Guide Tool
Use this guide tool to guide the push pin into the ceiling bracket and protect your ceiling.
